Haut-parleurs

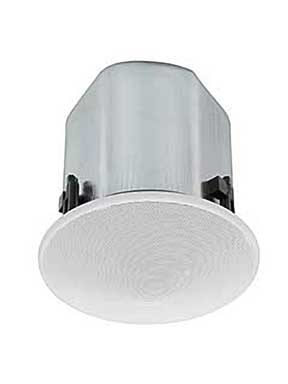

TOA F-122C
Haut-parleur large bande
191,00€
écotaxe 0,25€
Prix EDS191,00€
Prix public
Tarif de livraison 16,00€
Garantie :
1 an(s)
Stock principalTemporairement indisponible
Notre indication de stock est remise à jour toutes les 24H. Nous vous garantissons un traitement rapide et un suivi exceptionnel. La livraison sous 5/10 jours signifie que le produit est en stock chez notre fournisseur.
Caractéristiques F-122C
Enclosure Bass reflex type
Rated Input 30W (high impedance)
Power Handling Capacity Continuous pink noise: 60W(8Ω), 30W (16Ω)
Continuous program:120W(8Ω), 60W(16Ω)
Impedance (100V Line) 330Ω (30W),1k (10W), 3.3kΩ (3W), 10kΩ (1W)
Impedance (70V Line) 170Ω (30W), 330Ω (15W),1kΩ (5W), 3.3kΩ (1.5W),10kΩ (0.5W)
Impedance (25V Line) 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W)
Low (Adjustable) 16Ω, 8Ω
Sound Pressure Leve 90dB (1W, 1m)
Frequency Response 70 - 20,000Hz (-10dB), 50 - 20,000Hz (-20dB) at installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling.)
Speaker Component: High frequency 12cm cone-type
Speaker Component: Low frequency 12cm cone-type
Mounting Hole ø200(maximum ceiling thickness: 37mm)
Input Terminal Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Usable Cable Solid copper wire: ø0.5 - ø1.6mm (equivalent to AWG No. 24 - 14) Stranded copper wire: 0.2 - 2.5mm (equivalent to AWG No. 24 - 14)
Finish Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), black
Rim: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), white, paint
Punched net: Steel plate, white, paint
Dust-proof bag n/a
Dimensions ø230 x 229 (D)mm
Weight 3.7kg (including mounting accessories)
Accessories Panel 1
Ceiling reinforcement ring 1
Safety wire 1
Paper pattern 1
Option Anchor hanging bracket HY- AH1
Back can HY- BC1
Tile bar bridge HY- TB1
Trim ring HY- TR1
Electronic controller AC- 120C
Note The F-122C must be used with an Electronic Controller AC-120.
Rated Input 30W (high impedance)
Power Handling Capacity Continuous pink noise: 60W(8Ω), 30W (16Ω)
Continuous program:120W(8Ω), 60W(16Ω)
Impedance (100V Line) 330Ω (30W),1k (10W), 3.3kΩ (3W), 10kΩ (1W)
Impedance (70V Line) 170Ω (30W), 330Ω (15W),1kΩ (5W), 3.3kΩ (1.5W),10kΩ (0.5W)
Impedance (25V Line) 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W)
Low (Adjustable) 16Ω, 8Ω
Sound Pressure Leve 90dB (1W, 1m)
Frequency Response 70 - 20,000Hz (-10dB), 50 - 20,000Hz (-20dB) at installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling.)
Speaker Component: High frequency 12cm cone-type
Speaker Component: Low frequency 12cm cone-type
Mounting Hole ø200(maximum ceiling thickness: 37mm)
Input Terminal Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Usable Cable Solid copper wire: ø0.5 - ø1.6mm (equivalent to AWG No. 24 - 14) Stranded copper wire: 0.2 - 2.5mm (equivalent to AWG No. 24 - 14)
Finish Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), black
Rim: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), white, paint
Punched net: Steel plate, white, paint
Dust-proof bag n/a
Dimensions ø230 x 229 (D)mm
Weight 3.7kg (including mounting accessories)
Accessories Panel 1
Ceiling reinforcement ring 1
Safety wire 1
Paper pattern 1
Option Anchor hanging bracket HY- AH1
Back can HY- BC1
Tile bar bridge HY- TB1
Trim ring HY- TR1
Electronic controller AC- 120C
Note The F-122C must be used with an Electronic Controller AC-120.
